What Is a Manabloc?

What a Manabloc water manifold is, why many homes built with PEX have one, what goes wrong with the valves and connections, and when to call a plumber.

Published

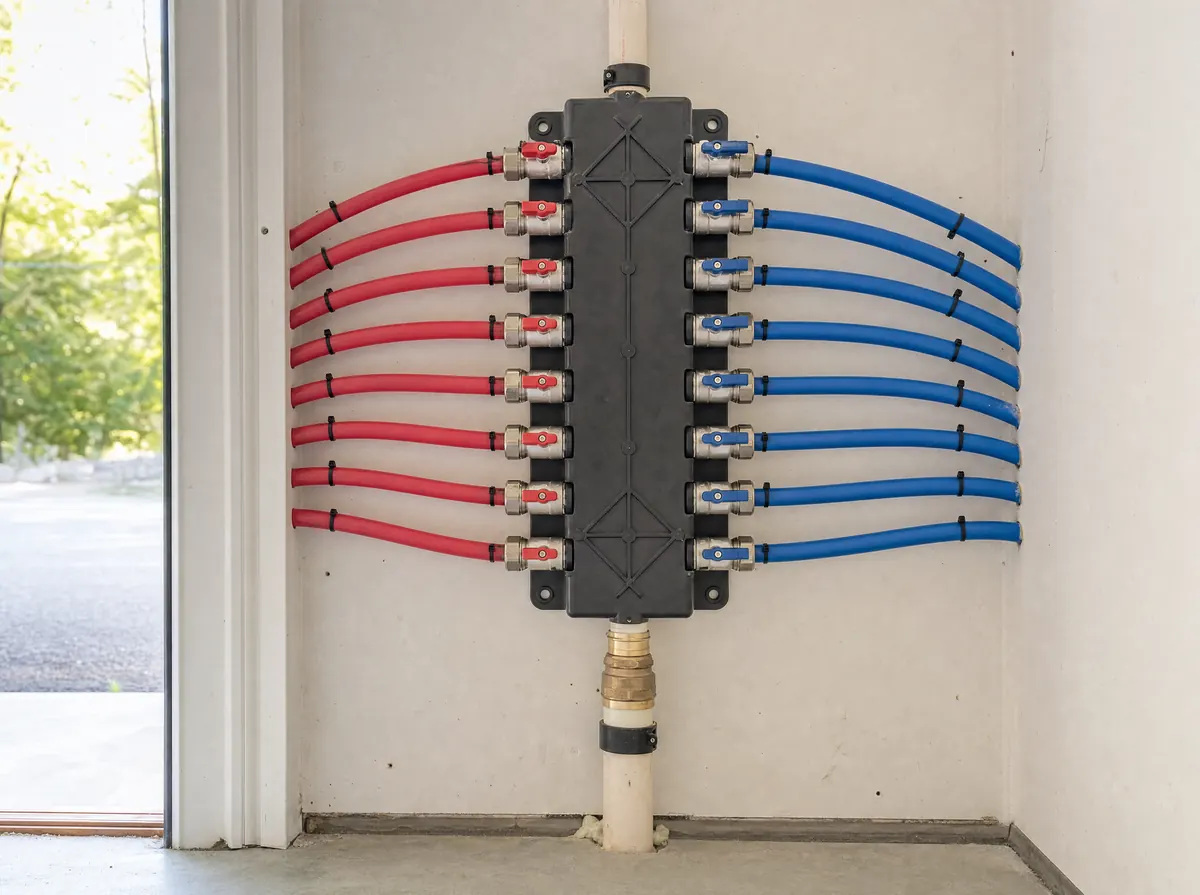

Illustration of a water distribution manifold with red hot and blue cold PEX lines, each with its own shutoff valve

A Manabloc is a water distribution manifold: a central block, usually in a garage or utility closet, where the main water line comes in and a separate PEX line leaves for each fixture in the house. Every line has its own quarter-turn shutoff valve on the block, so you can turn off one sink or shower without shutting off the whole house.

How it works

Think of it as a breaker box for water. The main supply comes into the block, a hot side is fed from the water heater, and each outlet port sends a dedicated line straight to one fixture. Because each line runs uninterrupted from the block to the fixture, the design puts no fittings inside the walls, and several fixtures can run at once without a big drop in pressure or temperature.

The valves on the block are labeled or numbered. A label chart, if the installer left one, tells you which valve feeds which fixture. If there is no chart, it is worth making one the next time a plumber is there.

What goes wrong

  1. A valve drips or will not turn

    The quarter-turn valve stems are wear parts and are replaceable. A stem that weeps at the handle or has seized after years without use is a common repair.

  2. A leak where a line meets the block

    The PEX lines attach to the ports with compression connections, and a connection that was never fully tightened, or a line that pulls on its port because it was not strapped to the wall, can leak at the port.

  3. An old block

    Blocks from the 2000s are twenty years old now, and worn stems and loose connections add up. A block with one bad valve is a repair; a block with several is usually a replacement.

Repair or replace

A dripping or stuck valve is fixed by replacing the stem, with the main water off and the system drained below the valve first. A cracked body or several failed ports means a new manifold. The existing PEX lines can usually be reconnected to the new block, so a replacement does not mean repiping the house.

Some owners ask about taking the manifold out and going back to conventional piping. That is possible, but on a house that was plumbed for a manifold it is a larger job than replacing the block, and it gives up the per-fixture shutoffs.

When to call

Water on the floor or wall where the block is mounted, a valve that will not turn, a fixture with no water or weak flow while the rest of the house is fine, or a leak anywhere in the house that the block will not shut off. For an active leak, close the house shutoff, which sits on the supply line before the block, and call.

If your house has a Manabloc, it is worth knowing where it is and which valve is which. In an emergency, the house shutoff on the supply line before the block stops everything.
